Kontajnerové riešenia
Kontajnerové fotovoltické riešenia od SMALL po XLARGE vrátane batériového úložiska, ochrany a vzdialeného manažmentu.
PV kontajnery
-
Minimal lifetime of PV panels 25 years
-
Minimal lifetime of batteries 8000 cycles = aprox. 10 years
-
Another equipment parts minimal lifetime 30 years
-
On ground mounting constructions as an Option
-
Recycling possibility on parity DDP Košice SK
-
Each container is fireproof and battery compartment is also separated with fireproof wall from other equipment
-
Main power is delivered to production, from rest is the battery charged
-
Possibility to connect external wall-box for charging cars – ABB Terra
-
Each container contains router for high crypted VPN connection for management software (Internet connection need to be provided)
-
Developed and designed in SLOVAKIA
-
Produced in SLOVAKIA
-
Our products are made from the latest and best technology provided by our partners
-
We use latest LiFePO4 battery technology that is durable and has 25% better size to capacity ratio then traditional LiPol batteries
-
Our inverter technology is latest with effectiveness 98,65% that is the best on the market
-
Maximum looses of total system are only to 10% ( traditional PV solutions are 15-20%)
-
Each of our solution has integrated latest surge protection to protect the container from lightnings and others types of electrical overvoltage
-
For communication you can connect trough 2G/3G/4G and 5G or u can use 1Gbps ethernet connection to existing network
-
Control and management system from ABB with propertial software from RASEMA
SMALL CONTAINER PV
- Small compact solution for islandn solution PV
- 400V AC 50Hz 3phases output on one connector
- Up to 1000V DC 20 MPPT inputs
- **Total AC power 10****0kW **/maximum 250A
- Total DC input 120kWp
- Total battery storage 30kWh
- 5 years warranty

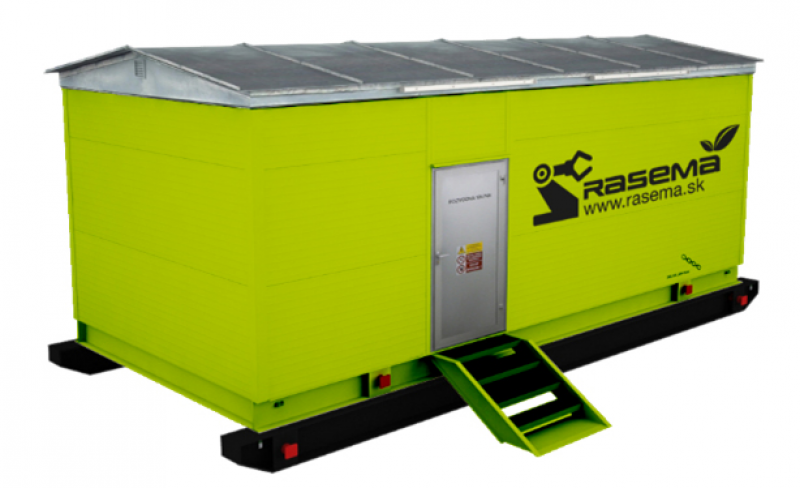

MEDIUM CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on two connectors
- Up to 1000V DC 44 MPPT inputs
- **Total AC power 20****0kW **/maximum 500A
- Total DC input 240kWp
- Total battery storage 60kWh
- 5 years warranty

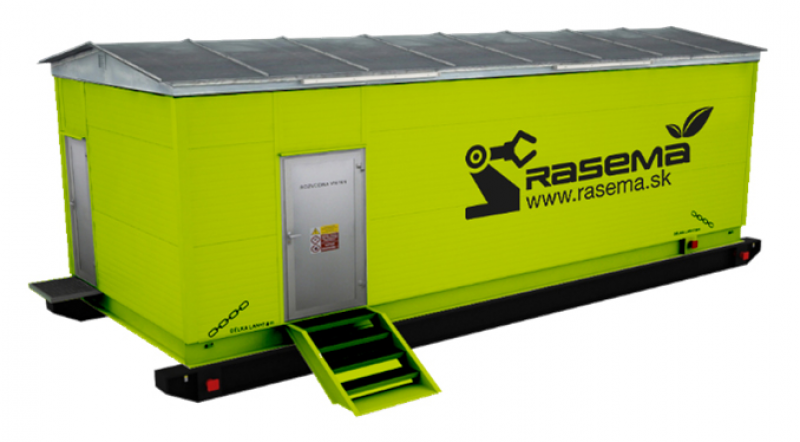

LARGE CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on four connectors
- Up to 1000V DC 80 MPPT inputs
- **Total AC power 40****0kW **/maximum 1000A
- Total DC input 480kWp
- Total battery storage 150kWh
- 5 years warranty
XLARGE CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on four connectors
- Up to 1000V DC 160 MPPT inputs
- **Total AC power 80****0kW **/maximum 2000A
- Total DC input 960kWp
- Total battery storage 250kWh
- 5 years warranty
